RustSBI Prototyper: Intra-Firmware Privilege Separation

#

Firmware is privileged system software that executes at the highest CPU privilege level and directly initializes or manages hardware resources. In native RISC-V ecosystem, SBI firmware runs in the M-mode, the highest architectural privilege level, while the operating system usually runs in S-mode.
Because M-mode firmware controls security-critical machine state and physical resources, an attacker who obtains arbitrary code execution in SBI firmware may compromise the confidentiality and integrity of the operating system and other higher-level software.

Like much system softwares, firmware traditinally been implemented by C language. But the C language is memory-unsafe language. It do not provide language-level protection against errors such as out-of-bounds memory accesses,use-after-free and invalid pointer dereferences. Such errors constitute a major source of security vulnerablities in large systems.For examples, the Chromium project reports that approximately 70% of its high-severity security bugs have resulted from memory-safety violations. In highly privileged firmware, exploiting such a vulnerability may allow an attacker to obtain machine-level privileges and compromise the security of the software stack above it.

Memory-safe languages such as Rust offer a promising alternative for implementing system software. Rust is increasingly being adopted in operating systems, kernels, and firmware because its ownership and type systems prevent many classes of memory-safety errors at compile time. Projects such as Rust for Linux, Tock, and Asterinas demonstrate that Rust can be used to build practical low-level systems. However, Rust does not eliminate all security vulnerabilities: its guarantees depend on the soundness of unsafe code.

Prior studies have demonstrated that this risk occurs in real-world Rust software. RUDRA analyzed unsafe abstractions across the Rust ecosystem and discovered previously unknown memory-safety bugs in widely used Rust libraries. TRust further showed that unsafe Rust and foreign-language libraries can undermine the safety guarantees of safe Rust code within the same process. An empirical study of Rust-for-Linux identified soundness bugs in kernel abstraction layers, including bugs that could break memory and thread safety. More recently, Detecting Type Confusion Bugs in Rust Programs demonstrated that unsafe pointer conversions can introduce severe type-confusion and memory-corruption vulnerabilities.

These findings motivate treating memory safety as a system-wide property rather than only a language guarantee. Asterinas introduces the framekernel architecture, which separates a privileged OS framework from de-privileged OS services. The framework confines low-level unsafe operations and exposes safe APIs to the rest of the kernel. Asterinas further analyzes unsoundness at three levels: language-level, environment-level, and architecture-level.

Among existing open-source SBI implementations, OpenSBI and RustSBI represent two prominent design approaches. OpenSBI is a mature reference implementation written primarily in C. Although using C does not make OpenSBI inherently vulnerable, its memory safety relies largely on manual reasoning, code review, and testing rather than language-level guarantees.RustSBI Prototyper instead use Rust to eliminate many classes of language-level memory errors. However, adopting Rust alone does not establish a sound firmware architecture, and the current public design does not provide a systematic soundness argument comparable to Asterinas. This motivates us to investigate how to construct Rust-based SBI firmware to provide soundness guarantee.

We propose an intra-firmware privilege-separation architecture that divides M-mode firmware into two layers. The machine layer forms the trusted computing base (TCB). It encapsulates architecture- and hardware-specific operations and exposes sound, typed, and capability-restricted interfaces to the upper layer. The prototyper layer uses these interfaces to implement M-mode services, such as SBI firmware, an RTOS runtime, or a security monitor, without directly manipulating raw machine state.

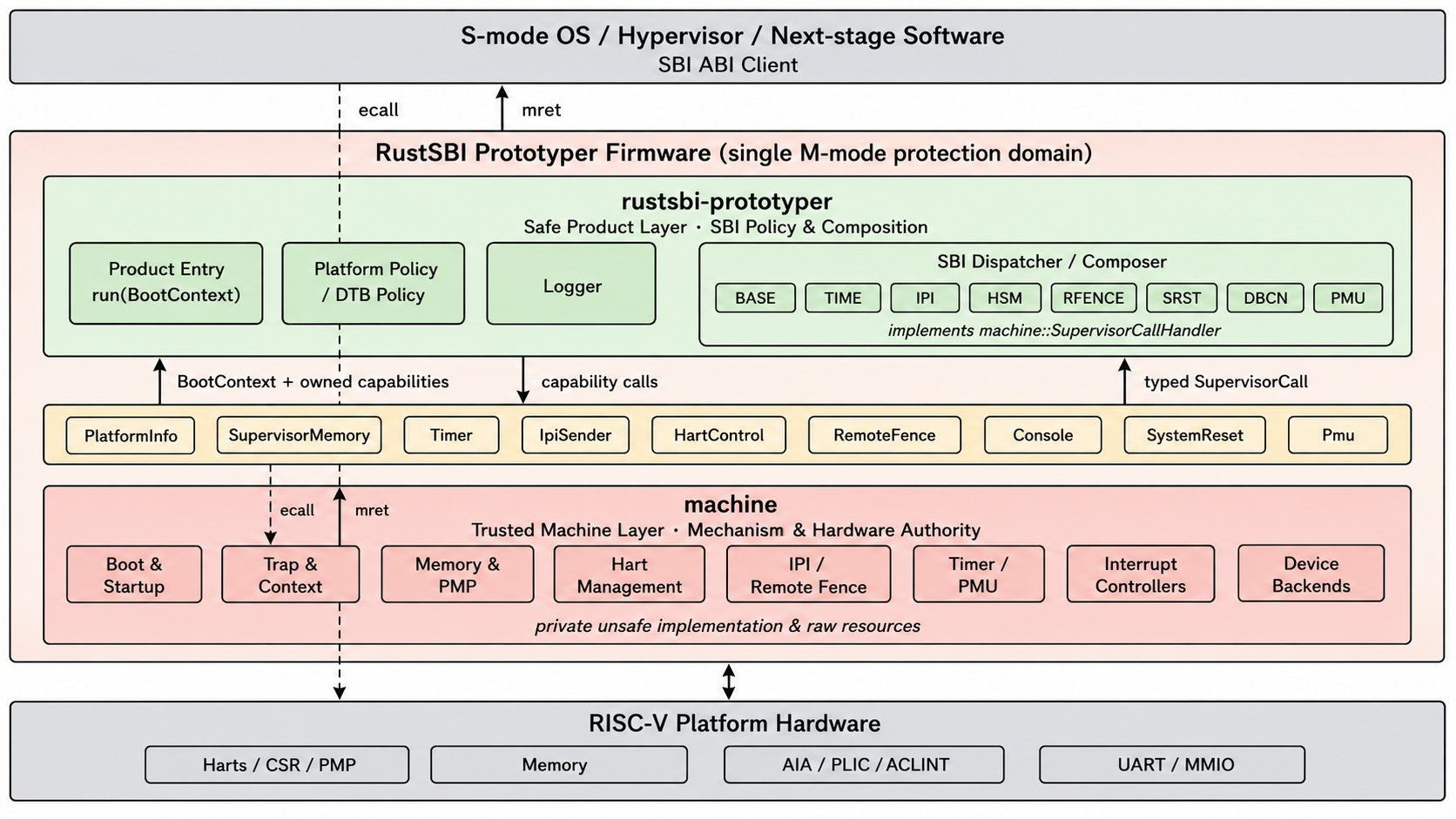

This figure presents the overall architecture of our intra-firmware privilege-separation design. The entire firmware executes within a single M-mode protection domain, but its authority is divided into two layers. The lower machine layer forms the TCB and exclusively manages raw hardware resources, including boot state, traps, physical memory, PMP, harts, interrupts, timers, and MMIO devices. It encapsulates the private unsafe implementation and exposes only typed, capability-based safe Rust interfaces.

The upper rustsbi-prototyper layer implements platform policy and SBI services using these capabilities. During boot, machine initializes the platform and passes a BootContext with owned capabilities to Prototyper. At runtime, an S-mode ecall first enters the machine trap subsystem, which decodes it into a typed SupervisorCall and forwards it to the SBI dispatcher. Prototyper then invokes the required machine operations through the capability interfaces, after which machine restores the execution context and returns to S-mode with mret. We defer the detailed design of individual interfaces and subsystems to later sections.
